Over 60 years of production and development experience has gone into Resolite’s RFM panels. These panels were tested at Factory Mutual Research Center and have passed the Factory Mutual 25 and 50 foot Corner Test. (FM Global Standard 4880) Both tests were conducted on minimum 6’0″ spans to simulate real-world conditions. Resolite RFM panels have also been tested and certified for the Canadian ULC S134.

Downloads

Factory Mutual Approved RFM 17, 14, 11

Format: pdf

Download

Resolite Technical Data

Format: pdf

Download

Embossed exterior surface – the exterior surface is embossed creating a resin rich surface for improved performance. The interior surface is smooth.
Three types available – 17 (17 oz.), 14 (14 oz.) and 11 (11 oz.)
Three standard colors: available in three standard opaque colors – Stone White, Gray and Beige. Consult Standard Color Guide for more information.
Two standard profiles: 7.2 x 1.5″ and 4.2 x 1-1/16″;
Two optional profiles – 7.2D x 1.75″, 7 x 1.5″.

Features and Benefits

Factory Mutual Approved – meets the criteria for approval as a Class 1, fire rated plastic building panel without height or area limitations and without sprinkler protection.
FM Wind Uplift Classification – RFM panels have achieved FM I-90 Wind Uplift Classification.
Corrosion resistant – produced with a high quality isophthalic halogenated polyester resin system.
C/W Barrier protection – a protective barrier on the exterior surface of RFM panels that is fused into the resin/fiberglass matrix to give the panel even greater protection against degradation.
Multiple glass reinforcements – RFM panels utilize a high strength combination of glass reinforcement including bidirectional continuous strand woven and chopped strand glass.
Exceeds ASTM D 3841 – Standard Specification for Glass-Fiber-Reinforced Polyester Plastic Panels.

Typical Applications

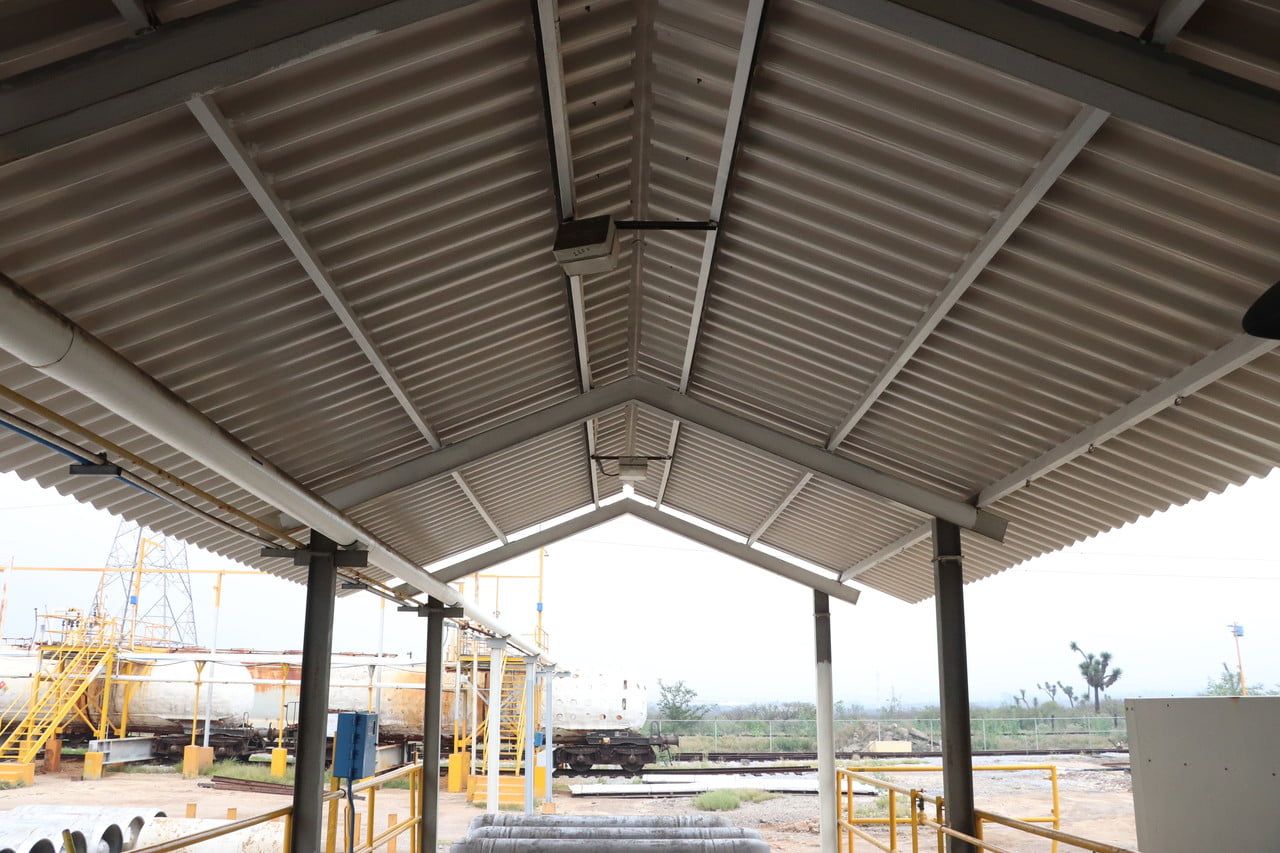

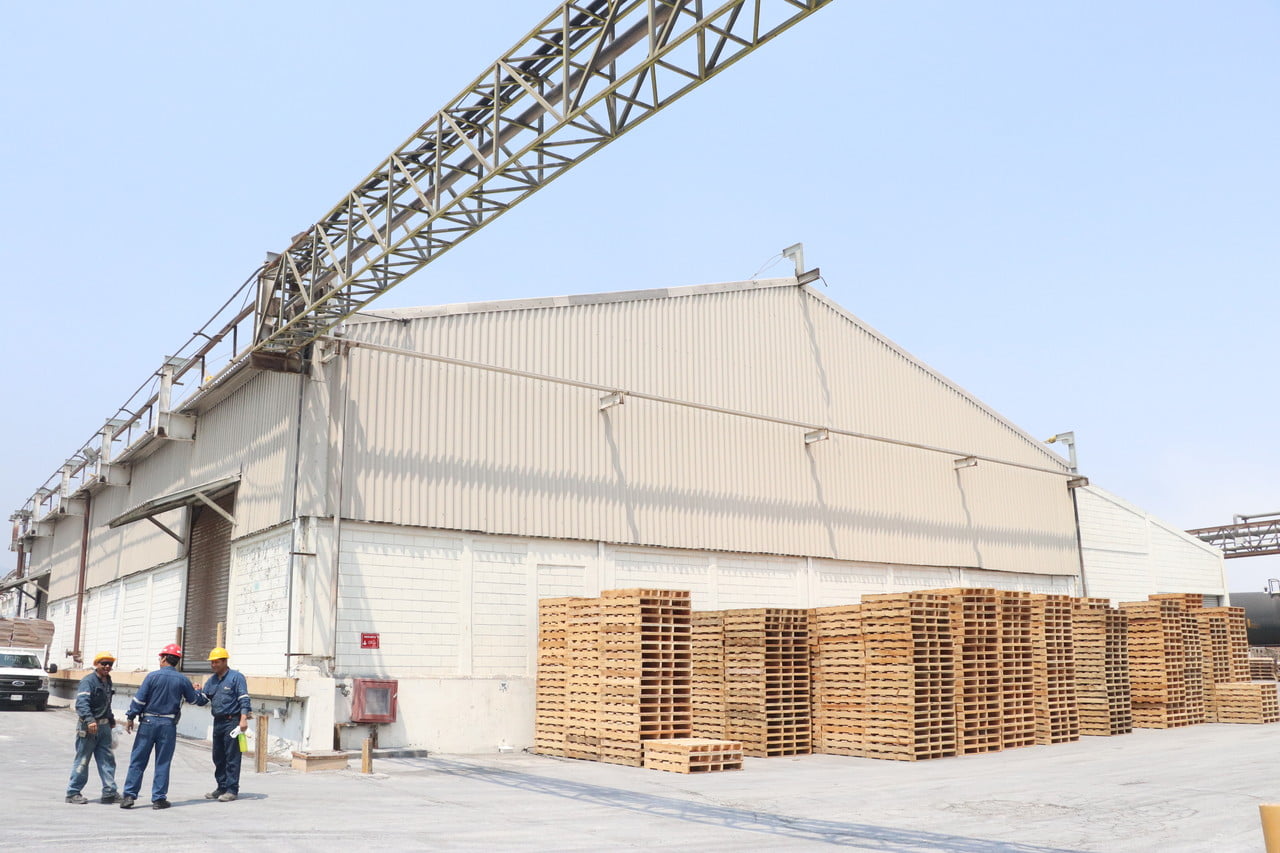

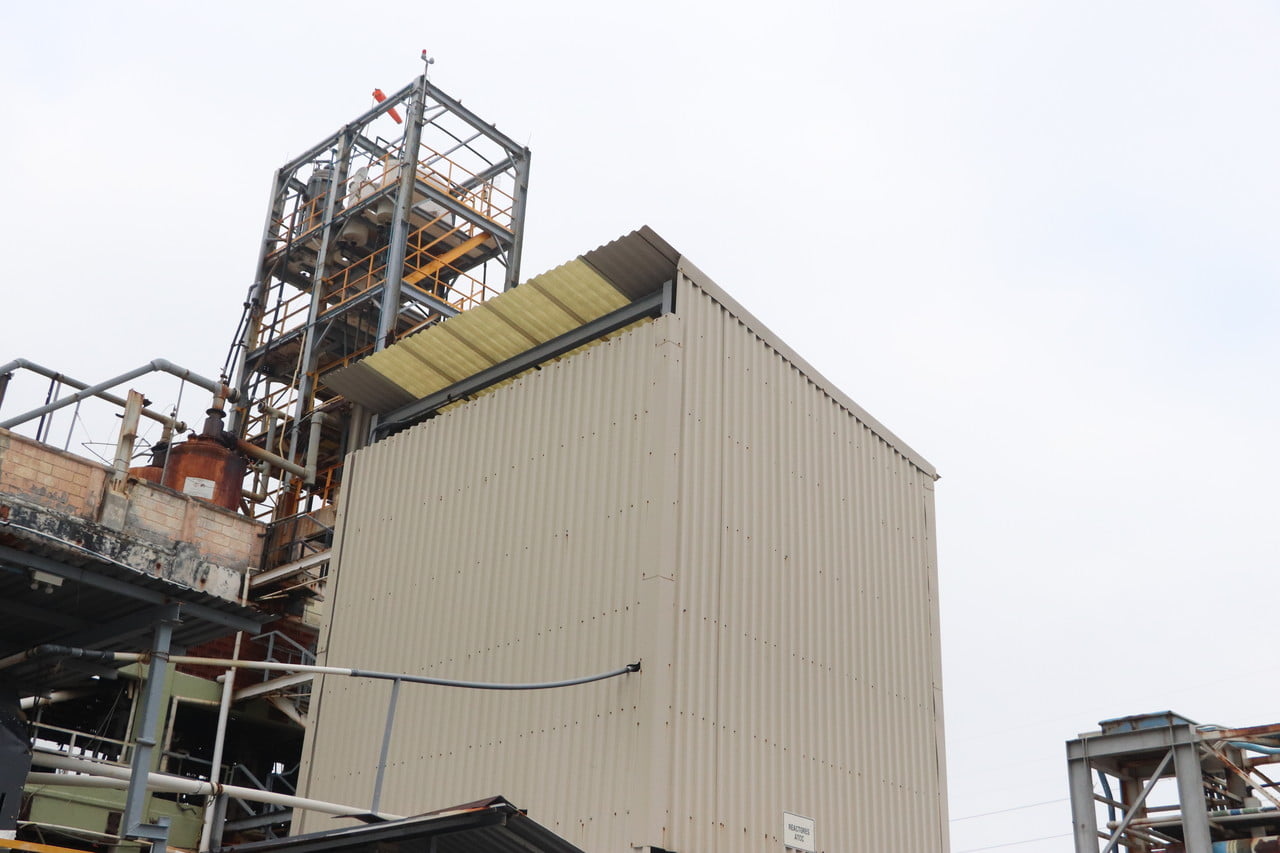

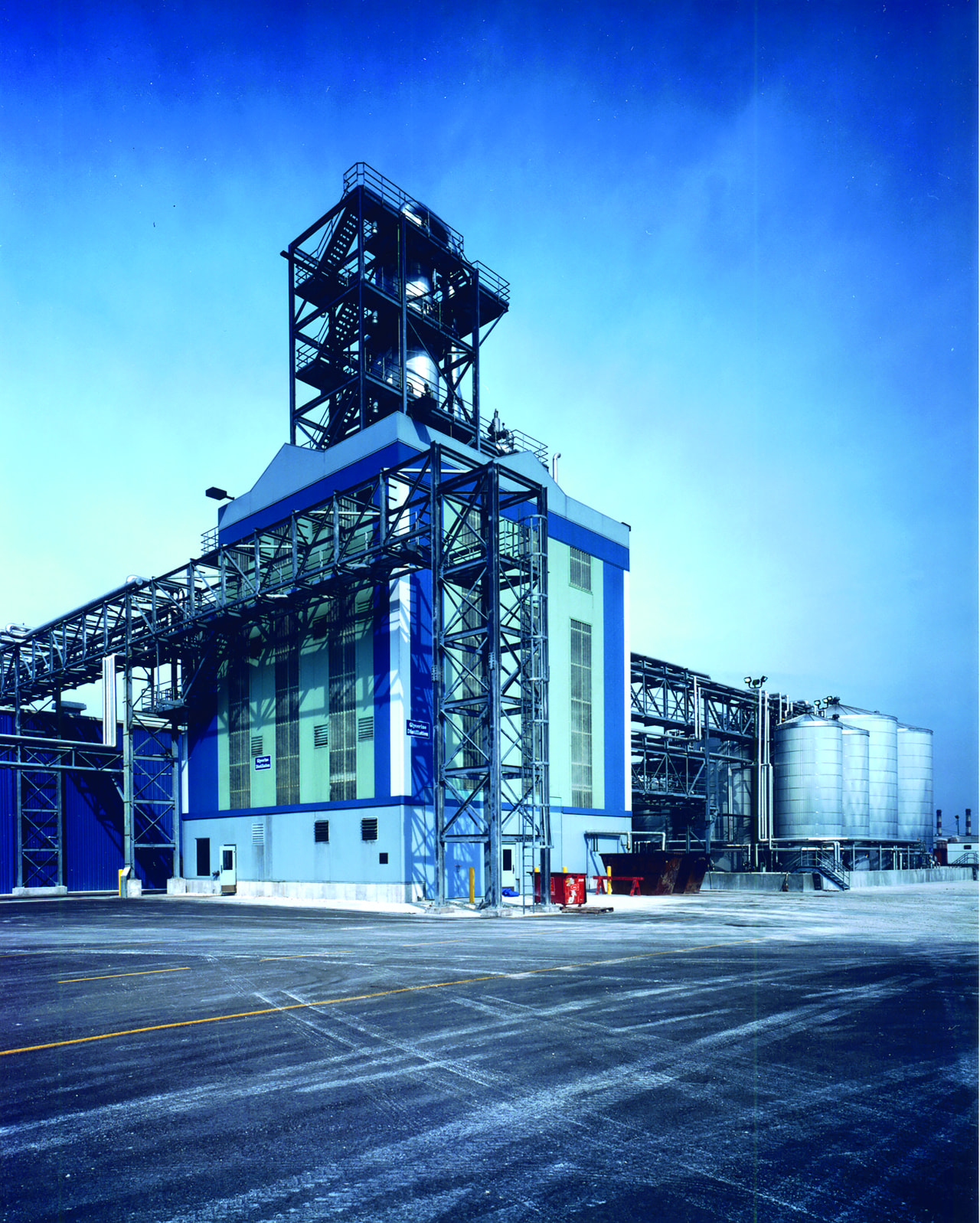

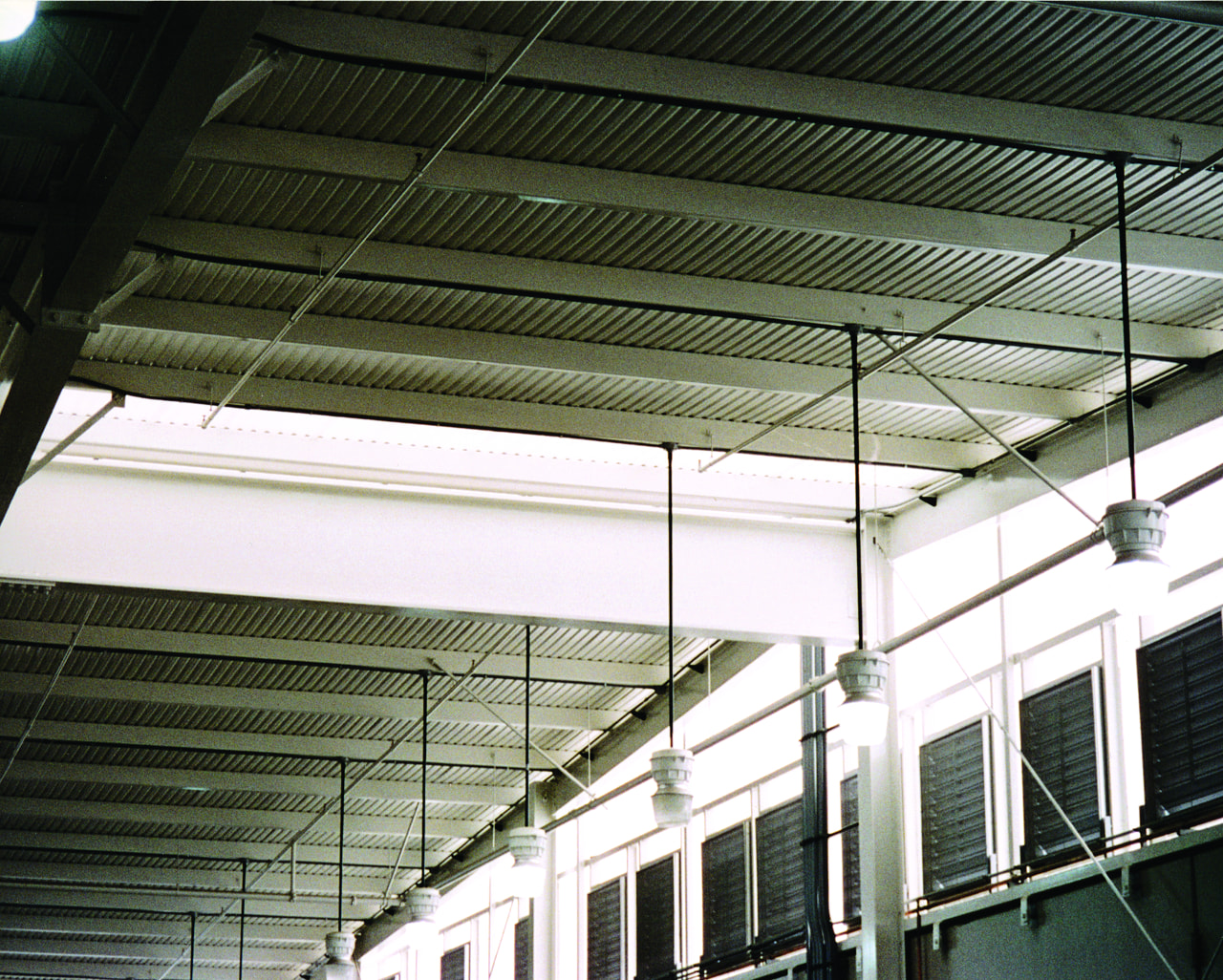

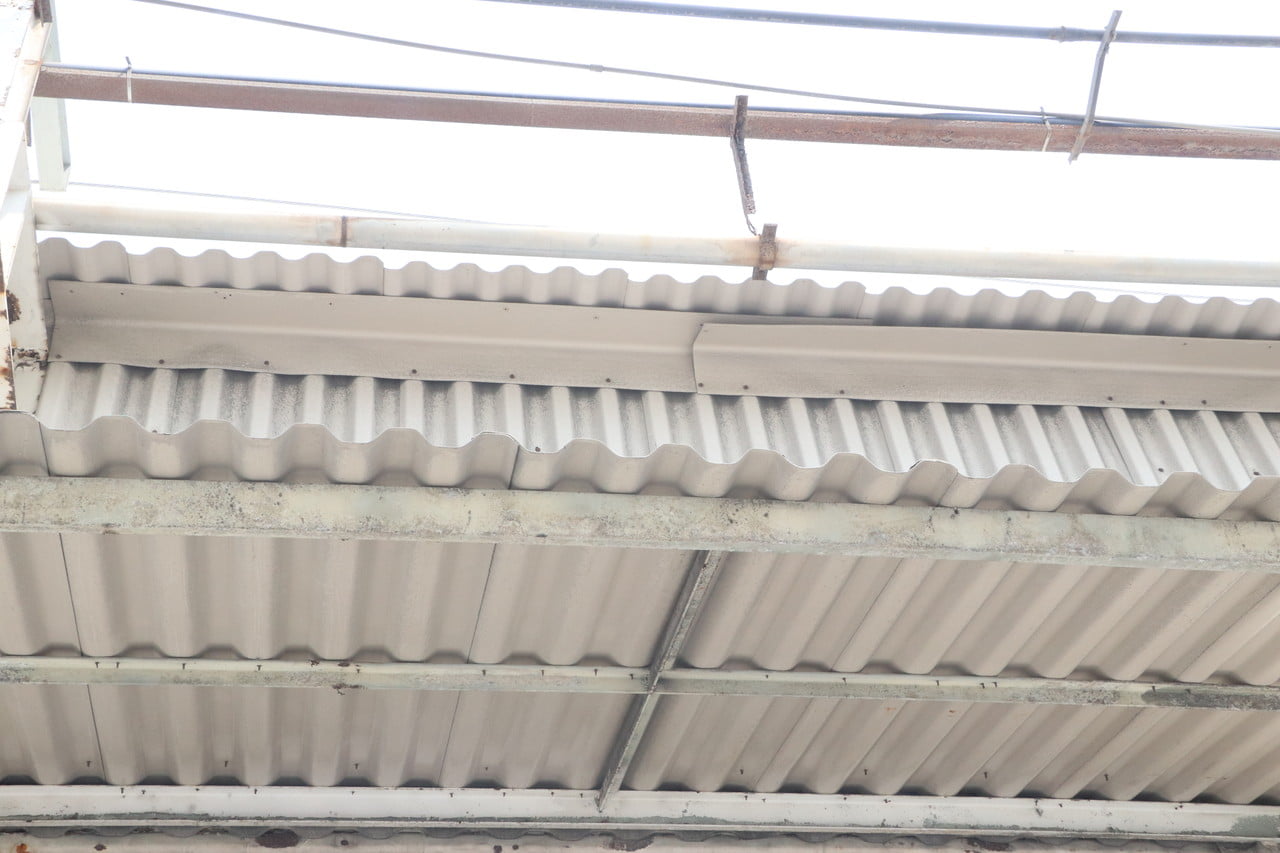

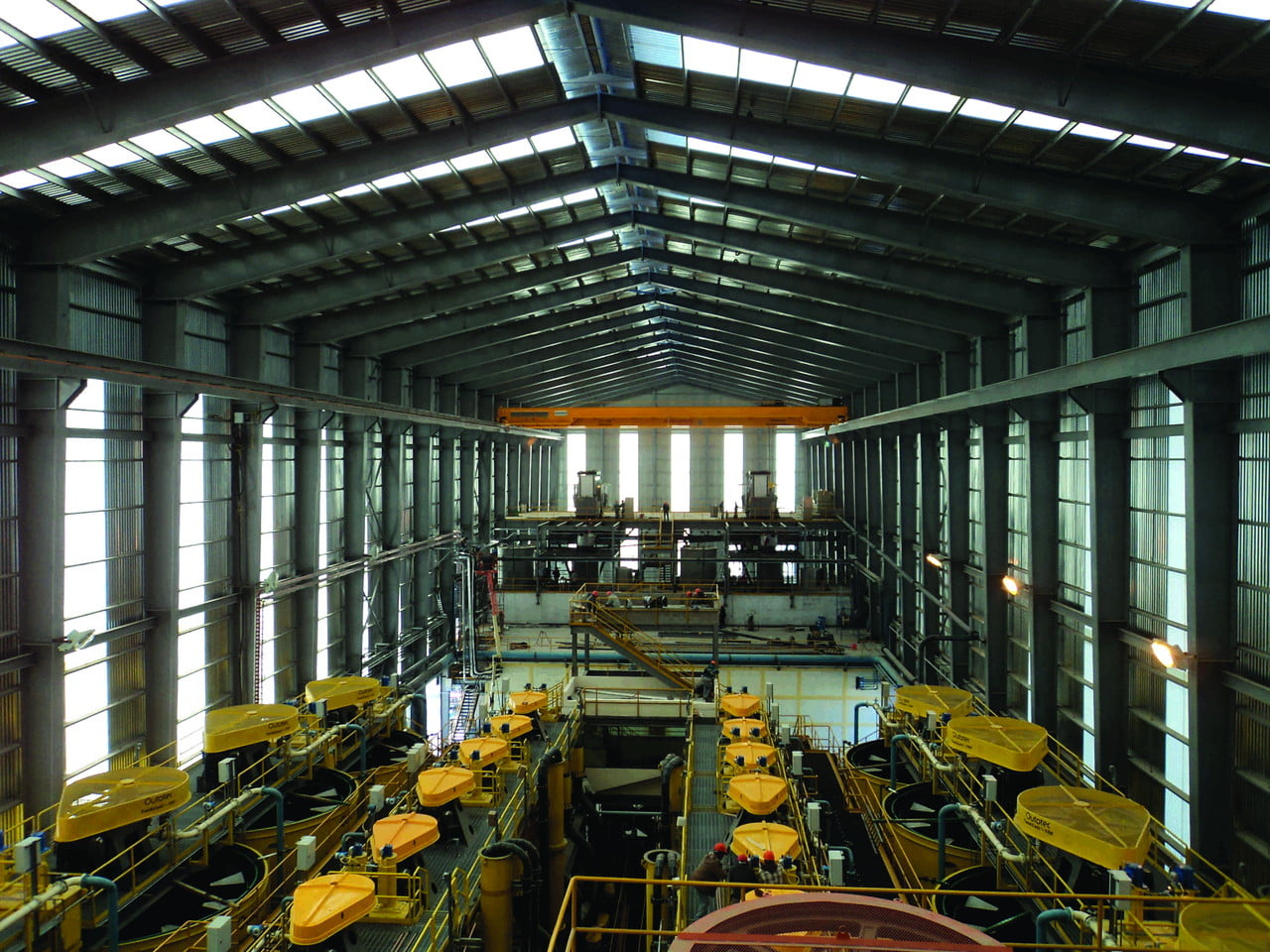

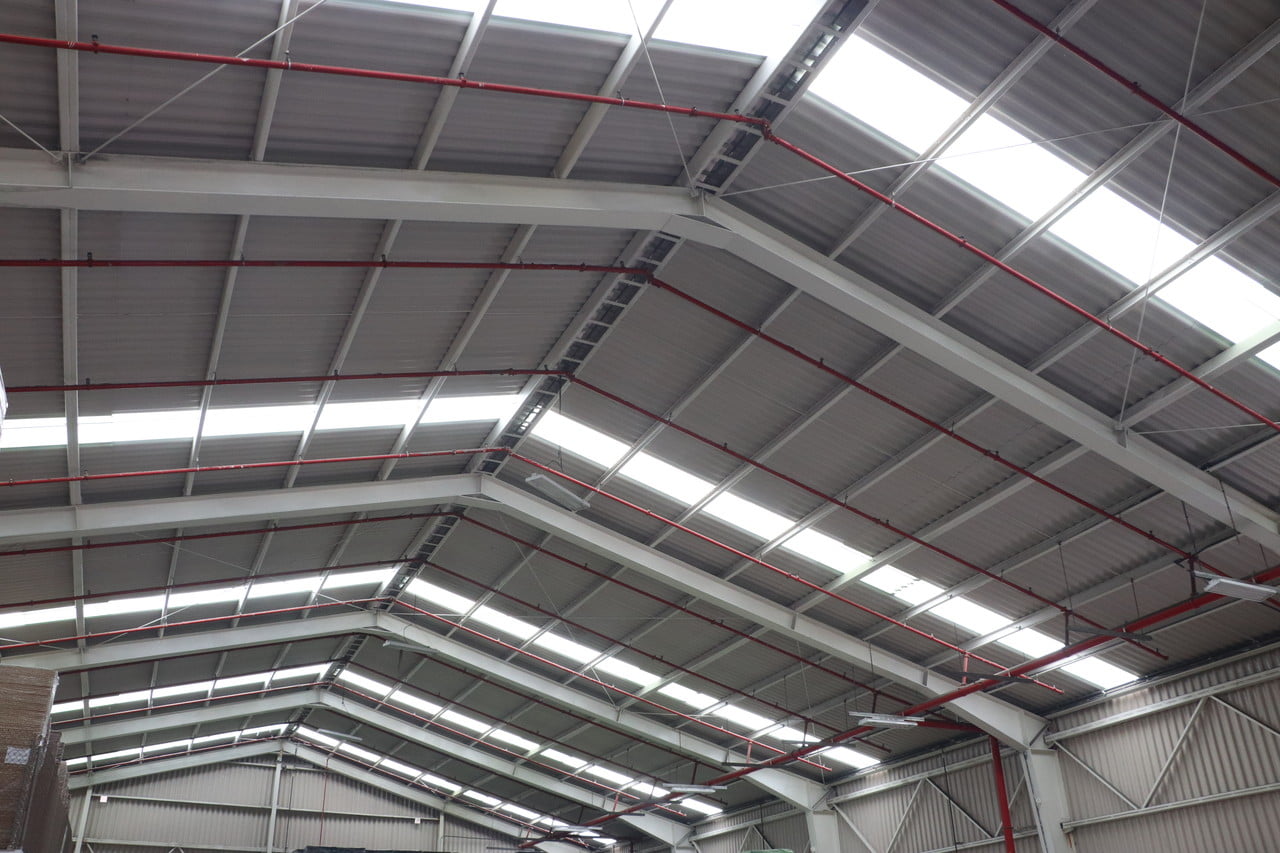

Metal construction industrial buildings, Warehouses
Commercial storehouses (supermarkets)

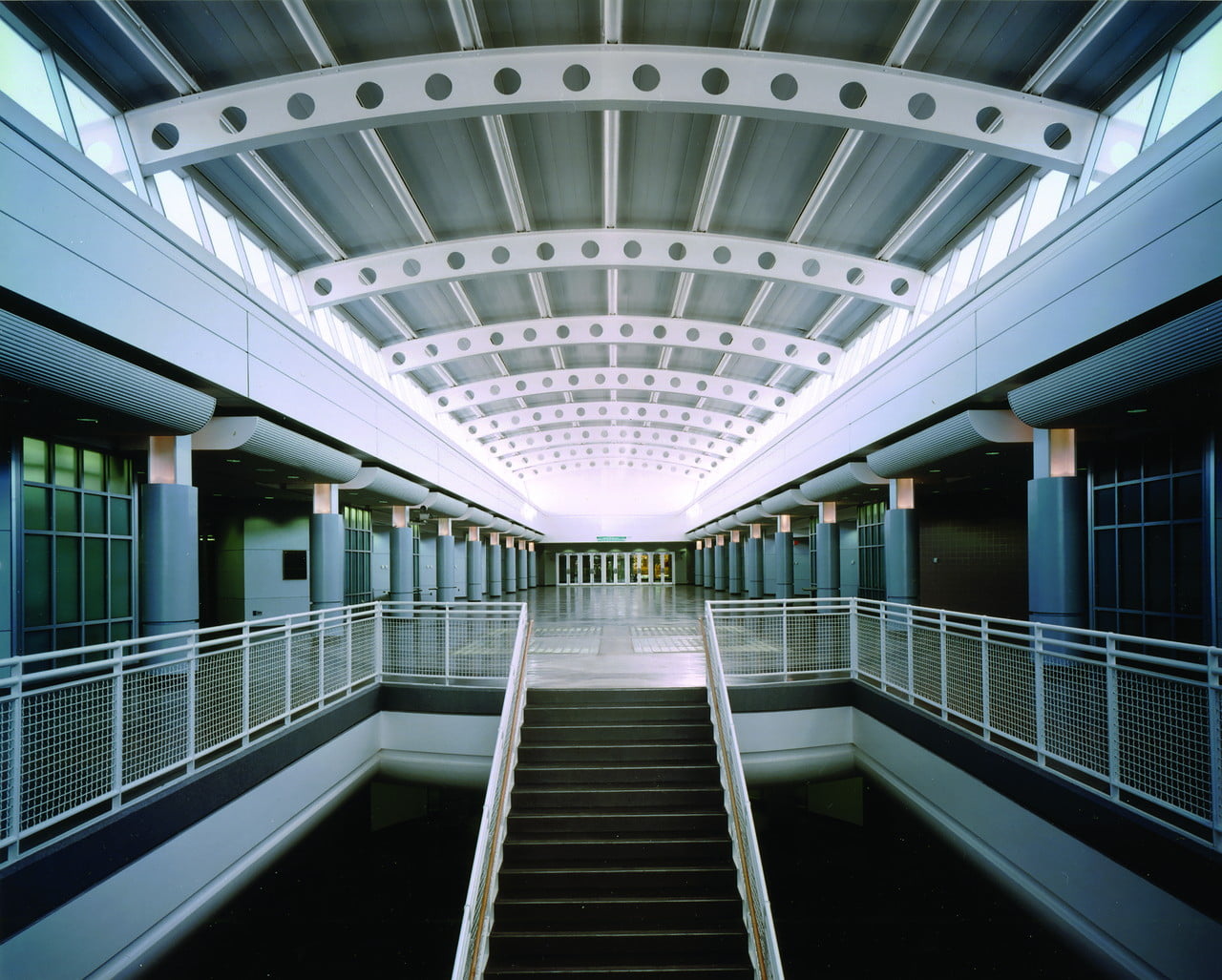

Architectural skylights in institutions such as sports complexes, hotels, swimming pools, airports, etc.

Applications

High performance industrial

Commercial

Architectural

Industrial

Multimedia

Fire rated panels for high spec industries

Similar Products

30' Series | 40' Series

Resolite FS25A and CRFS25A panels have over 50 years of long-term performance history. Both have been utilized wherever fire resistance, corrosion resistance and good weathering characteristics are critical. Installations include various types of manufacturing facilities and a host of other industrial building applications.
