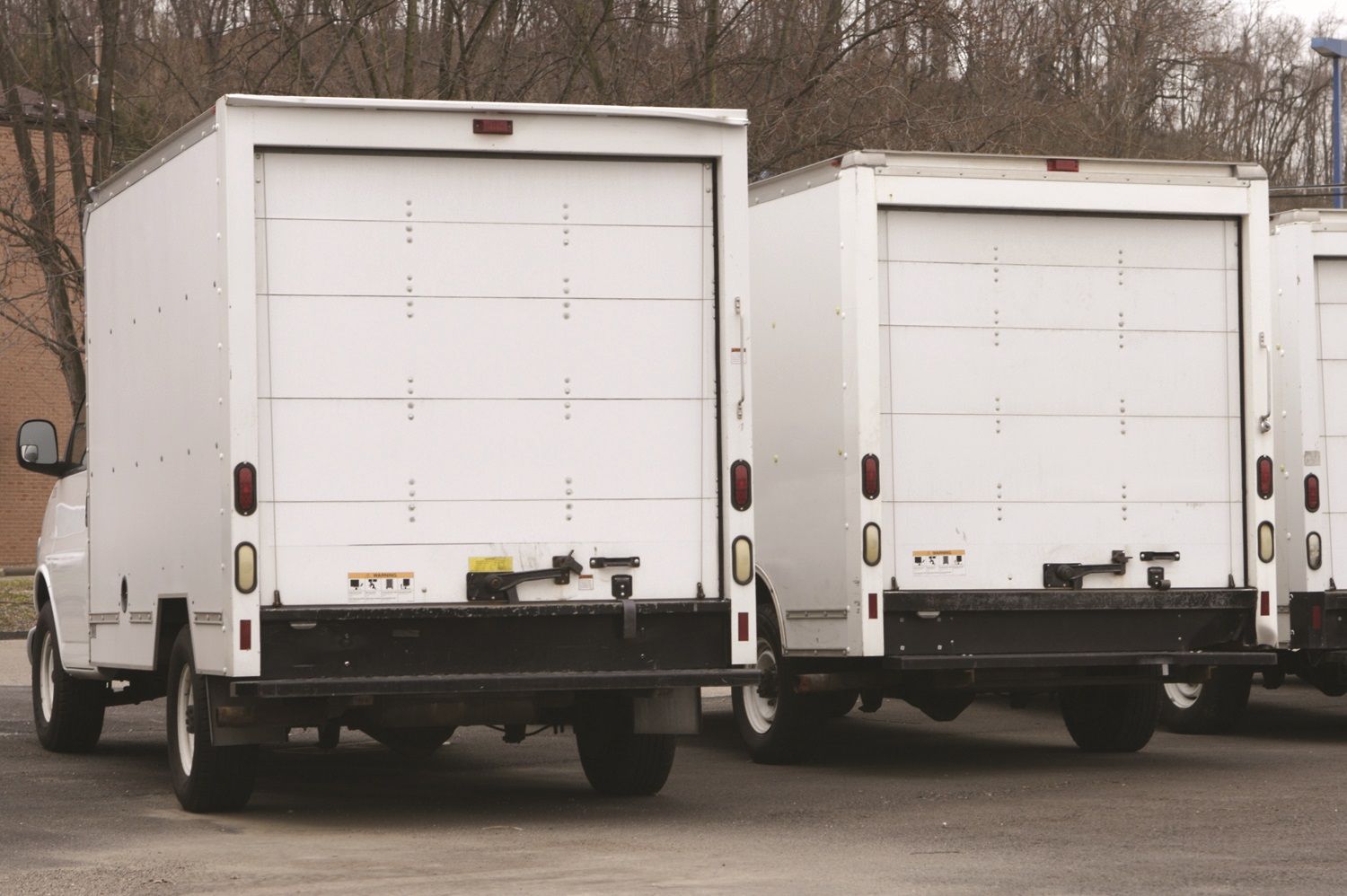

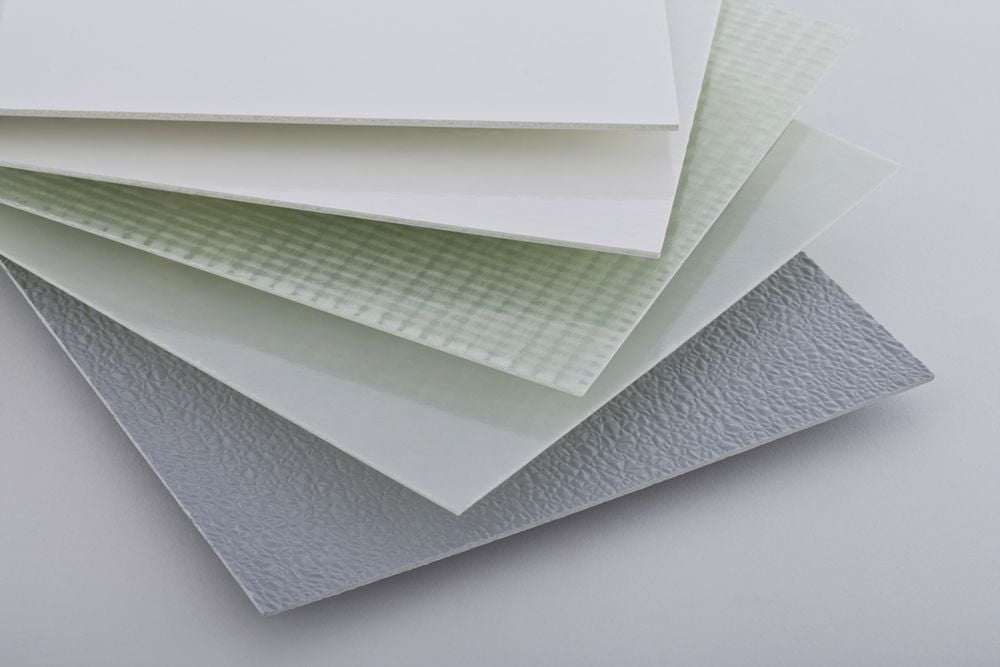

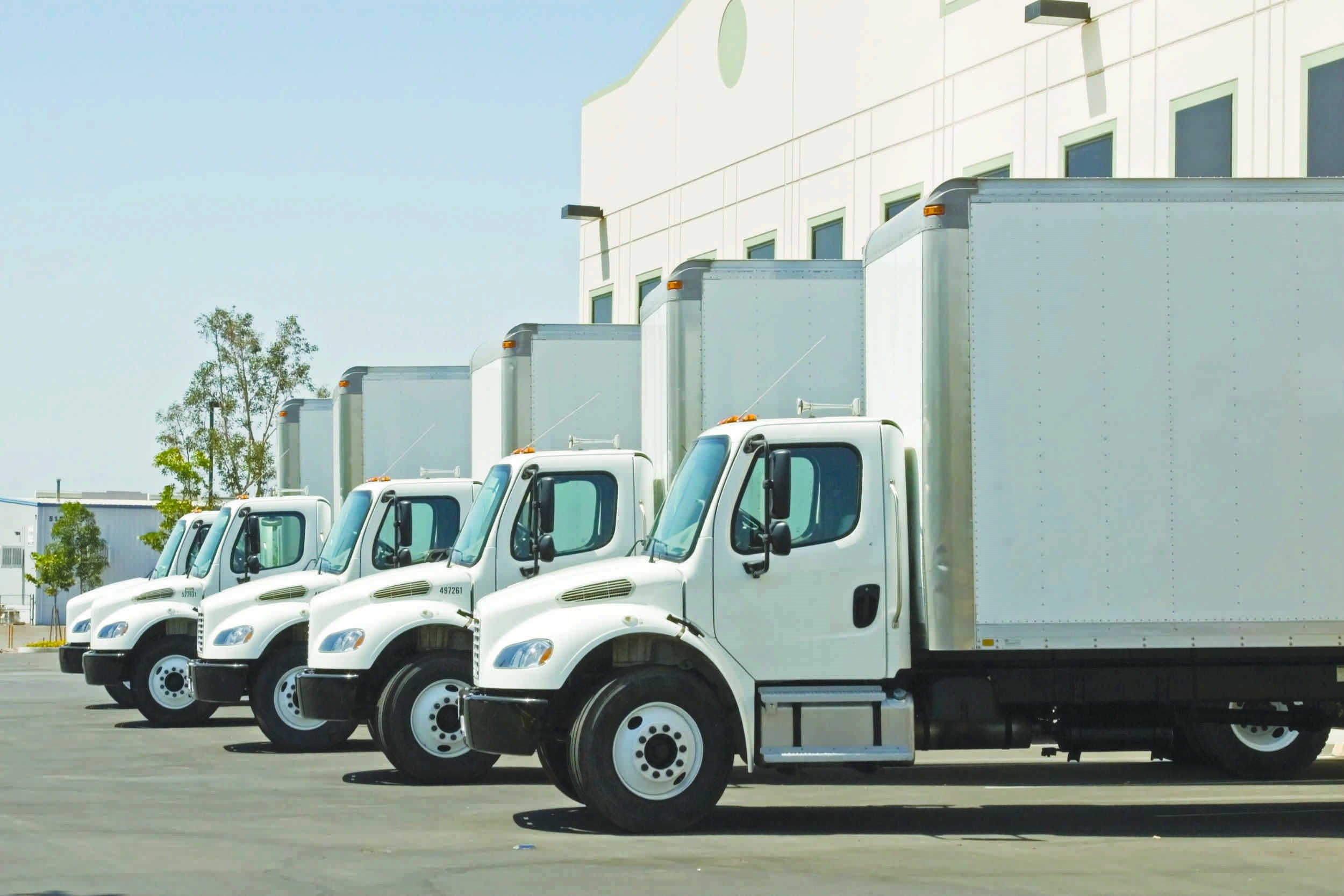

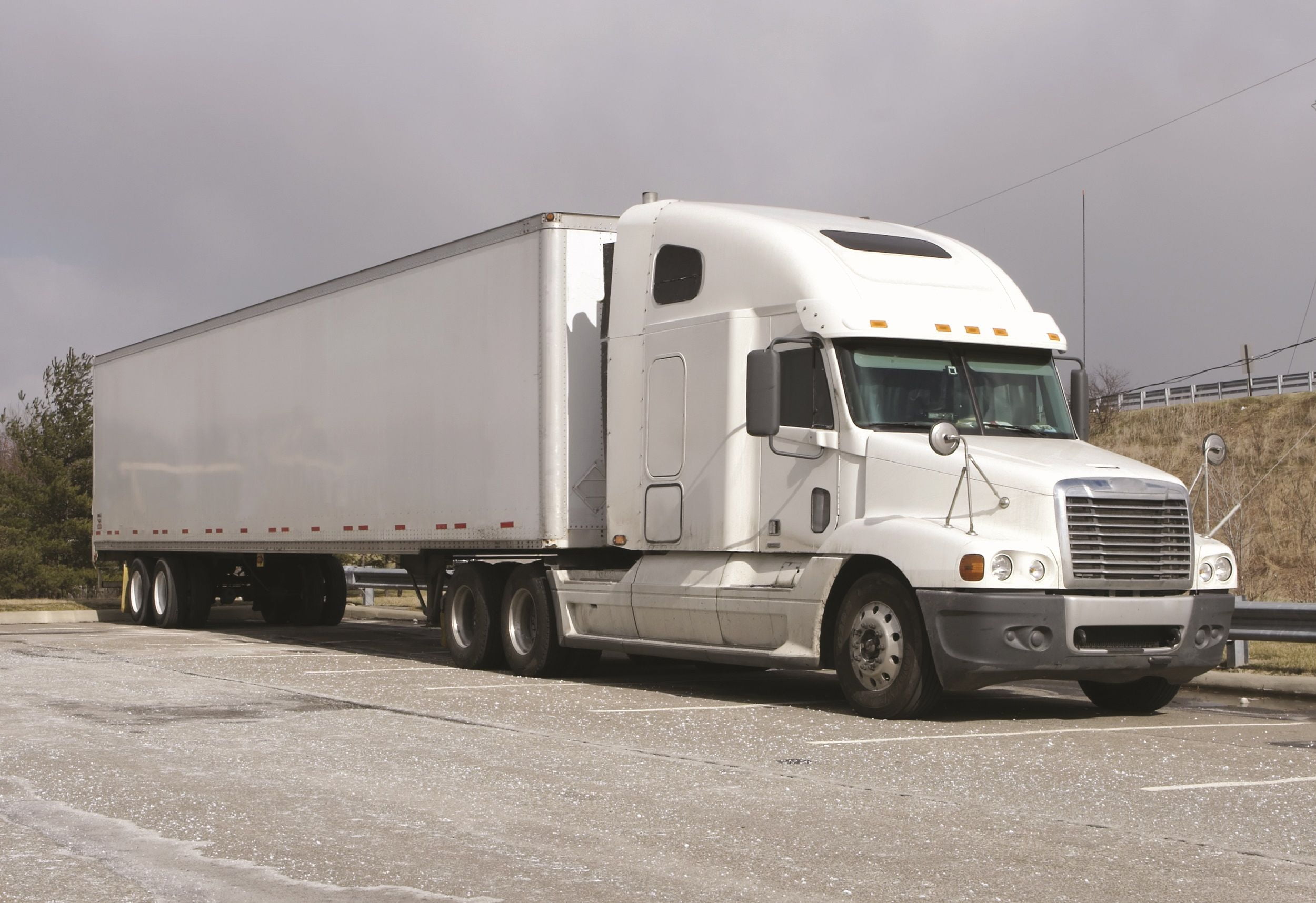

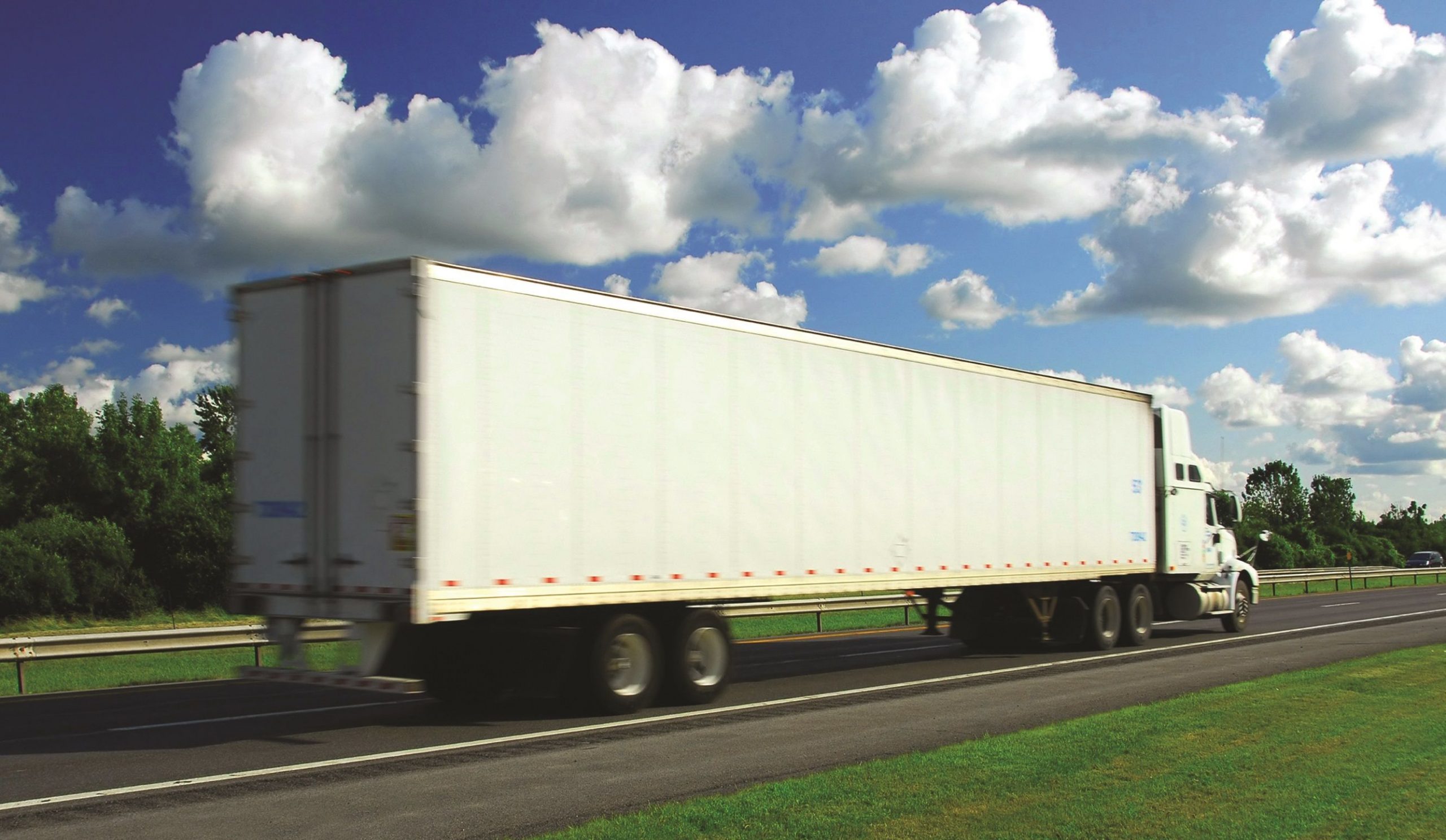

Steeliner for exterior walls and roofs is a fiberglass composite panel designed for the exterior walls of the body truck, with a special acrylic gelcoat which enables a longer protection against UV radiation and provides an excellent esthetical appearance, thereby providing years of care-free service to your vehicle.
| Physical specification | ||||||
|---|---|---|---|---|---|---|
| Steelwall Exteriors | ||||||
| Thickness | inch | .050 | .090 | |||
| mm | 1.25 | 2.3 | ||||
| Width | inch | from 35 to 102 | from 35 to 102 | |||
| mm | from .90 to 2.59 | from .90 to 2.59 | ||||
| Surface finish | Smooth | |||||
| Available in bulk coil, 250 to 500 linear feet as well as cut-to-length sheets. | ||||||
| Technical Characteristics | ||||||
|---|---|---|---|---|---|---|
| ASTM Standard | Test | Unit measure | Steelwall Exteriors Agrigelcoat | Steelwall Exteriors Agrigelcoat with WR | ||
| D-790 | Flexural strength | Psi | 19×103 | 30×103 | ||
| D-790 | Flexural modulus | Psi | 6×105 | 9×105 | ||
| D-638 | Tensile strength | Psi | 12×103 | 28×103 | ||
| D-638 | Tensile modulus | Psi | 9×105 | 1.5×105 | ||
| D-638 | Elongation | % | 1.5 | 1.3 | ||
| D-256 | Impact resistance | Ft-lb/in notched | 6 | 11 | ||
| D-696 | Coefficient of linear expansion | ln/in/ºF | 1.7×105 | 1.6×105 | ||
| D-2583 | Hardness | Barcol | 40 | 40 | ||
| D-177 | Thermal conductivity factor | Btu in/hr./ft2/ºF | 0.45 | 0.45 | ||
| D-570 | Water absorption | % | 0.25 | 0.25 | ||
| D-792 | Specific gravity | gr/cm3 | 1.53 | 1.61 | ||
Steeliner Sheet
Format: pdf
Steeliner Warranty
Format: pdf
MSDS 2017
Format: pdf

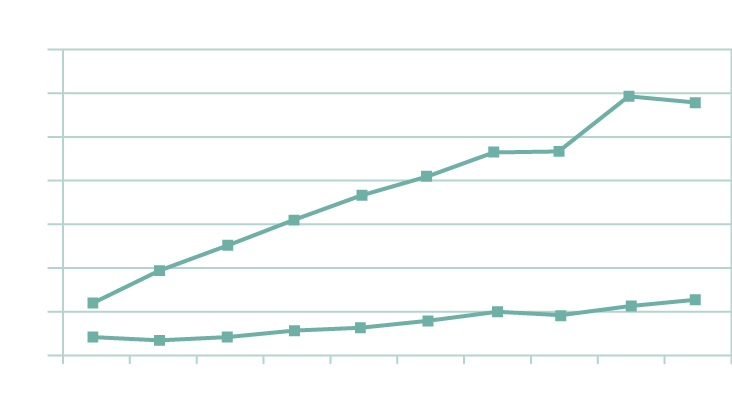

Yellowing of Steeliner Exterior Panels vs. Competitor
Its special formulation and Agri Gel Coat protection provides high aesthetics combined with low level yellowing, extending significantly the lifetime of the truck body.
